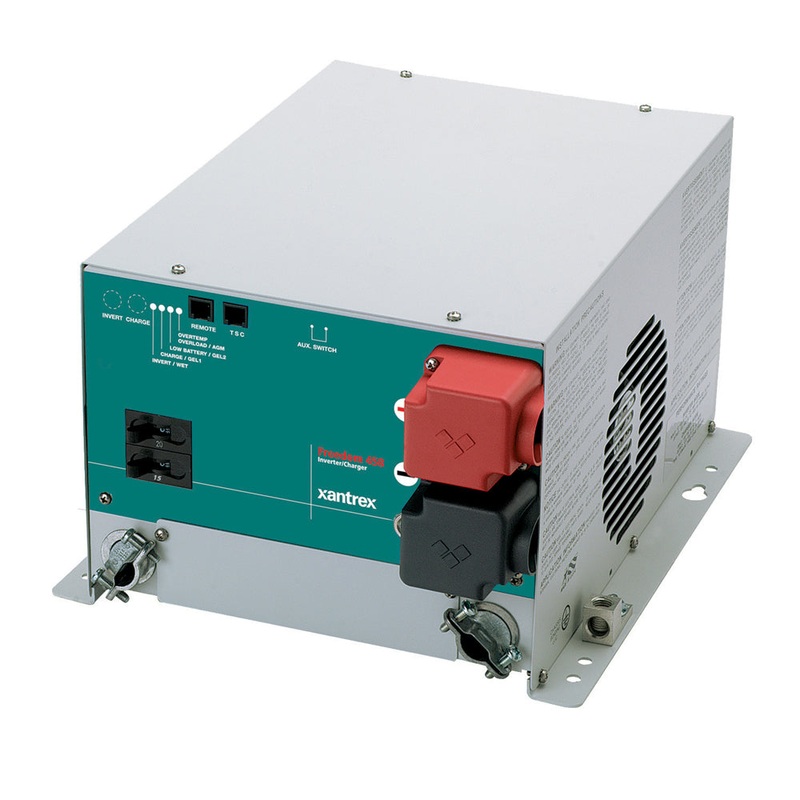

Description Freedom 458 Inverter/Charger AC Power Inverter with High Surge Capability, 3-Stage ChargerWith filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion. For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation. Product Features MSW AC power inverter with high surge capability Automatic 3-stage battery charger Temperature compensation with equalization stage provides optimal charging of deep cycle batteries Built-in transfer switch automatically transfers between inverter power and incoming AC power Power sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels Includes battery temperature sensor 30 month warranty Protection Features Over voltage and under voltage protection Over-temperature protection Overload protection Short circuit protection Electrical Specifications – Inverter Output power (continuous): 2000W Surge power (AC amps): 50A Output frequency regulation: 60Hz Inverter voltage regulation: 120V /-5% true RMS Output wave form: Modified sine wave Efficiency (full load): 85% Peak efficiency: 92% No load current draw (idle mode): 0.12A AC output connections: Dual – 20/15 Circuit Breakers AC input connections: Single AC transfer switch: 30A Electrical Specifications – Charger Charge rate: 100A DC AC input voltage range: 90 130 VAC Battery voltage (nominal): 12 VDC Battery voltage range: 10.0 15.5 VDC Low battery cut-out: 10.0 VDC AC input (max. charge mode): 21A AC Bulk charge voltage: 14.3 VDC Float charge voltage: 13.4 VDC Equalize charge voltage: 16.3 VDC Charge control: 3-stage Battery type settings: Wet / Gel 1 / Gel 2 / AGM Equalization: Yes Temperature sensitive charging: Yes Default value varies with battery type and temperature WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Outlet Qty: None Charging Banks: 1 Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input – Voltage: 120v Inverter Cont. Output Wattage: 2000w Charger Output Voltage: 12v Charger Output – Amps: 100a Box Dimensions: 13″H x 15″W x 19″L WT: 55.7 lbs UPC: 647912106149 Owner’s Manual (pdf)Brochure (pdf)
