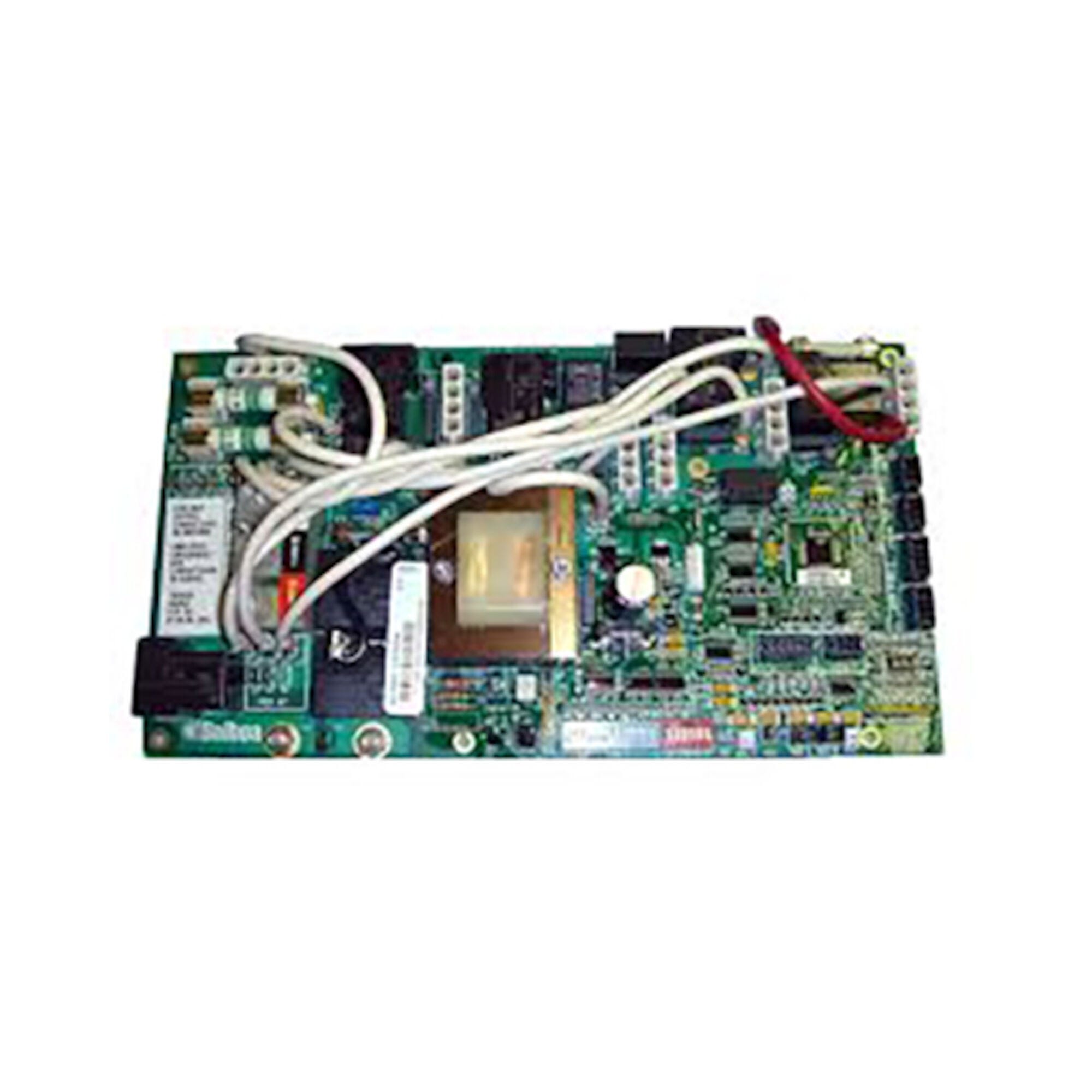

��️ Balboa EL2000M3 Spa Circuit Board — G1222 (ML Series, Mach 3) The proven EL2000 Mach 3 replacement board with M7 technology, dual-speed pump support, and full ML panel compatibility �� Product Overview The Balboa EL2000M3 Circuit Board (G1222) is the genuine Balboa Water Group main PCB for EL2000 Mach 3 spa control systems. Formerly known as 53834-05 (through several revisions), the G1222 is the current production part number for this long-running and widely deployed EL2000 platform board — found in millions of hot tubs under many brand names. This board equips the EL2000 control system with full Balboa M7 Technology, eliminating the need for an external pressure switch or flow switch. It manages a wide range of spa equipment: a 2-speed primary jet pump (Pump 1), a configurable secondary pump or blower (Pump 2), an optional single-speed circulation pump, ozone/UVC output, 12V or 120V lighting, audio/video, and a 5.5kW heater at 240VAC. The secondary pump (Pump 2) and Blower are enabled and configured through DIP switch settings, giving service technicians flexibility when replacing failed boards across a range of spa configurations. Compatible exclusively with Balboa ML-series digital topside panels (ML400, ML700, ML900), the G1222 replaces all prior EL2000M3 board revisions (53834-01 through -05) and is used across spas by Beachcomber (select models), Master Spas, Coleman by MAAX, Granville Spas, and others. ⚠️ Critical Installation Notes: New boards ship with a Plug-n-Click heater adapter (PN 25696). For existing heaters, the copper strap must be removed OR use heater adapter PN 25263 (60-138-1040). This board installs in a plastic control box only — it will NOT fit a metal enclosure. This board will NOT replace Thermo Spa systems (55000-02, 55000-03, 55000-04, 55001, TS2000R2A/B/C, QC2000). ✨ Key Features ✅ M7 Technology — No Pressure Switch Required — Built-in flow and pressure sensing eliminates the need for an external pressure switch or flow switch; simplifies installation and reduces failure points ✅ 2-Speed Primary Pump (Pump 1) — Full 2-speed control at 120V or 240VAC; serves as the heater pump delivering low-speed circulation and high-speed jet operation ✅ Configurable Secondary Pump or Blower — Pump 2 and Blower are independently enabled via DIP switches B2 and B3; Pump 2 speed (1-speed or 2-speed) set via switch B1 — covers virtually any EL2000 spa configuration ✅ Optional Circulation Pump Support — Single-speed circ pump supported across four configurable behaviors (off, 24-hour, 24-hour with 3°F shutoff, or polling mode) via DIP switches A9/A10 ✅ Dual Voltage — 115V / 230VAC — Supports both North American 115V and 230VAC residential service on the same board; critical voltage rules apply (see specifications) ✅ Flexible Lighting Output — Configurable for 12V spa light or 120V fiber optic/wheel lighting via J37 jumper and B4 DIP switch; supports Mood EFX and Fiber EFX accessories ✅ Ozone / UVC Output — Configurable for 120V or 240V ozone generator; voltage must match circ pump when circ pump is installed ✅ Genuine Balboa OEM PCB — Factory original G1222 board with chip EL2000M3R2C and software version 32; ensures correct relay ratings and ML panel compatibility ✅ Compatible with All Balboa ML Digital Panels — Works with ML400, ML700, and ML900 topside panels with correct RTC jumper (J91) configuration ✅ Pump 3 / Blower Expansion Capable — Optional Pump 3 or Blower expansion via X-P632 extender board (PN 53680); Aux panel support via J5/J6 ✅ 1-Year Manufacturer Warranty — Backed by Balboa Water Group’s standard 1-year limited warranty �� Technical Specifications Specification Value Manufacturer Part Number G1222 (formerly 53834-05) System Part Number 53884-05 System Model E2P-EL2000M3-YCAH Control System Number 55065-02 Base PCBA 53834-05 PCB Model 22896 Rev B Chip Number EL2000M3R2C (also: R2A, R2B, R2D, R2E) Software Version 32 Board Technology M7 (no external pressure switch required) Board Type Main PCB / Control Board Enclosure Requirement Plastic control box ONLY — will NOT fit metal enclosure Input Voltage 115VAC or 230VAC / 60Hz (dual voltage) Neutral Required Yes Circuit Breaker (115V) 20A maximum Circuit Breaker (230V) 50A maximum Service Wiring (115V) 3 wires [hot, neutral, ground] Service Wiring (230V) 4 wires [hot, hot, neutral, ground] GFCI Protection Class A GFCI required Pump 1 Output 120V/240VAC, 2-Speed — heater pump Pump 2 Output 120V/240VAC, 1-Speed or 2-Speed (DIP B1); enabled/disabled via DIP B2 Blower Output 120V/240VAC, 1-Speed; enabled via DIP B3 Pump 3 Output Via optional X-P632 expander; enabled via DIP B5 Circ Pump Output 120V/240VAC, 1-Speed; optional — configured via DIP A9/A10 Ozone / UVC Output 120V or 240V (configurable via W13 wire); must match circ pump voltage if circ pump installed Spa Light Output 12VAC or 120VAC (set via J37 jumper) A/V (Stereo) Output 120VAC (default); convertible to 240VAC for compatible heat pump accessories Heater Output (240VAC) 5.5kW @ 240VAC Heater Output (120VAC) Approximately 1kW @ 120VAC (25% of 240V rated wattage) Heater Connector Plug-n-Click Molex — includes adapter 25696; copper strap removal required on existing heaters Terminal Block Torque (TB1) 27–30 in. lbs. Compatible Topside Panels ML400 (PN 52684), ML700 (PN 52649-01), ML900 (PN 52654-01) Certifications Please refer to manufacturer documentation or contact Parts4Tubs Warranty 1 Year (Balboa Water Group) Physical Dimensions Please refer to manufacturer documentation or contact Parts4Tubs Operating Temperature Range Please refer to manufacturer documentation or contact Parts4Tubs ⚠️ US Voltage Note: This board supports 115VAC (20A breaker) or 230VAC (50A breaker) / 60Hz North American service. Always confirm your spa’s electrical configuration before ordering. Neutral wire is required in both configurations. ⚠️ Voltage Rule: If a circ pump is installed, the Ozone output and Circ Pump must be the same voltage. Verify W13 wire position for correct ozone voltage output. �� Compatibility Guide Replaces These Part Numbers Part Number Description G1222 Current Balboa manufacturer part number 53834-05 Balboa PCBA — latest revision 53834-04 Balboa PCBA — prior revision 53834-01 / -02 / -03 Earlier Balboa PCBA revisions 53834 Base Balboa part number 53884-05 Balboa complete system PN 55065-02 Balboa control system number 55001 System board reference 55000-02 System reference (TS2000R2A/R2B only — NOT Thermo Spa) 33-53834-K Hydro-Quip kit number 33-0029-K Hydro-Quip kit number 52680 Earlier EL2000 Mach 1 board reference 59-138-1017 Distributor cross-reference 3-60-0176 Distributor cross-reference 55488 / 55489 / 55100 System variants 10-175-4302 OEM cross-reference 54302-03 OEM cross-reference 106-982 Coleman Spas PCB reference 9710-109 Cross-reference FWEL2KM3 Firmware/chip cross-reference EL2000M3R2D / EL2000R1B Chip designations TS2000R2A / TS2000R2B Chip designations (non-Thermo Spa only) Compatible Spa Brands (Select Models) Brand Notes Beachcomber Hot Tubs Select models ONLY — NOT a replacement for 53210-01/02/03 or 51593-01 Master Spas Legend series (54491) Coleman by MAAX Including some models with pack #106-982 / Balboa #54301-04 (verify chip # 450R or 460R2 series) Granville Spas Compatible select models ⚠️ Thermo Spa Incompatibility: This board will NOT replace Thermo Spa systems 55000-02, 55000-03, 55000-04, 55001, TS2000R2A, TS2000R2B, TS2000R2C, or QC2000. Thermo Spa owners must contact Thermo Spa directly for the correct board. Compatible Topside Control Panels Panel Part Number Panel Type ML400 52684 Non-time capable ML700 52649-01 Time capable — RTC must be enabled (J91 1-pin only) ML900 52654-01 Time capable — RTC must be enabled (J91 1-pin only) ⚠️ Important: The ML700 and ML900 are time-capable panels — J91 jumper on the main board must be set to 1-pin only (RTC enabled). The ML400 is non-time-capable — J91 must be set to both pins jumpered (RTC disabled). Incorrect J91 setting causes display errors. ⚠️ Do not order based on board appearance. Multiple EL-series boards look identical but contain different chips and software. Always verify by matching the chip number (EL2000M3R2x) AND part number from the label on the old board before purchasing. �� Board Functions & Controls Pump & Equipment Configuration Output DIP Switches Voltage Function Pump 1 A11 (speed/ozone link) 120V or 240VAC, 2-Speed Primary jet pump and heater pump Pump 2 B1 (speed), B2 (on/off) 120V or 240VAC Secondary jets — 2-speed (B1 OFF) or 1-speed (B1 ON) Blower B3 (on/off) 120V or 240VAC, 1-Speed Air blower output Pump 3 B5 (on/off) Via X-P632 expander Optional third pump (replaces Blower on Aux panel) Circ Pump A9 / A10 120V or 240VAC, 1-Speed Optional — 4 behavior modes Ozone W13 wire 120V or 240V Slaved to Pump 1 Low or circ pump Spa Light J37 jumper W9 12VAC or 120VAC Standard spa light or fiber optic A/V Stereo Default 120VAC 120V or 240V Stereo/entertainment system Circ Pump Behavior (DIP A9/A10) A9 A10 Circ Pump Mode OFF OFF No circ pump ON OFF 24-hour continuous OFF ON 24-hour with 3°F shutoff ON ON Acts like Pump 1 Low (filter cycles polls) DIP Switch Reference (Switchbank A) Switch OFF Position ON Position A1 Test Mode OFF (normal) Test Mode ON A2 Heater OFF with any high-speed pump (low amp) Heater ON with any high-speed pump (high amp) A3 Filter cycles by start/end time (time-capable panels) Filter cycles by duration (non-time-capable panels) A4 12-hour time display 24-hour time display A5 Fahrenheit display Celsius display A6 Equipment timeout 15 min (2 hr for P1-Low) Equipment timeout 30 min (4 hr for P1-Low) A7 No cleanup cycle Cleanup cycle enabled (30 min after spa use) A8 Ozone suppression disabled Ozone suppression 1 hr after pump/blower press A11 P1 2-speed; Ozone ON with P1-Low (no circ) / Ozone ON with circ pump P1 1-speed (circ mode) or 2-speed; Ozone in filter/cleanup only (no circ) / Ozone with circ pump A12 Persistent memory retained (normal) Persistent memory reset (only during power-up) DIP Switch Reference (Switchbank B) Switch OFF Position ON Position B1 Pump 2 two-speed Pump 2 single-speed B2 Pump 2 disabled Pump 2 enabled B3 Blower disabled Blower enabled B4 Spa light enabled Fiber optic / wheel lighting enabled B5 Pump 3 disabled Pump 3 enabled (via X-P632 expander) B6 Normal panel layout Alternate ML900 scrunching layout Key Jumpers Jumper Function J37 Pins 1–2 = 120VAC spa light; Pins 2–3 = 12VAC spa light (W9 must match) J91 1-pin only = RTC enabled (time-capable panels: ML700/ML900); Both pins jumpered = RTC disabled (non-time-capable: ML400) Heater Outputs Configuration Output 240VAC supply 5.5kW @ 240VAC 120VAC supply ~1kW @ 120VAC (approximately 25% of 240V rated wattage) Heater connection Plug-n-Click Molex connector (25696 adapter included); copper strap MUST be removed from existing heater Existing heater adapter PN 25263 / 60-138-1040 required if not replacing heater ⚙️ Installation Requirements ⚠️ IMPORTANT: All electrical work must be performed by a licensed electrician in compliance with the National Electrical Code (NEC) Article 680 and all applicable local codes. Pre-Installation Checklist [ ] Verify chip number on existing board reads EL2000M3R2 (any letter suffix: A, B, C, D, or E) [ ] Verify spa uses a plastic control box enclosure — this board will NOT fit a metal box [ ] Confirm spa is NOT a Thermo Spa brand — this board is incompatible with Thermo Spa systems [ ] Note all existing DIP switch settings before removing old board (photograph Switchbank A and B) [ ] Note J37 and J91 jumper positions [ ] Note all wiring including W13 (ozone voltage) and W9 (light voltage) [ ] Disconnect ALL power at the breaker and GFCI before starting [ ] Photograph all connector positions before disconnecting anything [ ] Allow capacitors to discharge — wait at least 5 minutes after power-off [ ] Have heater adapter 25263 (60-138-1040) ready if retaining existing heater — copper strap removal is required Electrical Requirements Requirement Specification Supply Voltage (standard) 230VAC / 60Hz Supply Voltage (optional) 115VAC / 60Hz Circuit Breaker (230V) 50A maximum Circuit Breaker (115V) 20A maximum GFCI Protection Class A GFCI required — NEC Article 680 Wiring (230V) 4 wires: hot, hot, neutral, ground Wiring (115V) 3 wires: hot, neutral, ground Neutral Wire Required in all configurations Ground Connection Equipment grounding and bonding required — NEC Article 680 Terminal Torque (TB1) 27–30 in. lbs. Dedicated Circuit Required Disconnect Within line of sight of spa, minimum 5 ft from water (NEC) Critical Post-Wiring Steps Set Switchbank A and B DIP switches to match your spa’s pump and equipment configuration Set J37 jumper for correct spa light voltage (12V or 120V); W9 must match J37 Set J91 jumper for your topside panel type (RTC enabled for ML700/ML900; disabled for ML400) Set W13 wire for correct ozone voltage (120V or 240V) Reset Persistent Memory (A12 ON during power-up) after any DIP switch or configuration change Set A12 back to OFF after Persistent Memory reset completes �� Tip: Label or photograph the existing DIP switch configuration. After replacing the board, reconfigure DIP switches to match the original settings before first power-up. Persistent Memory (A12) must be reset after any DIP switch change — the new settings will NOT take effect until memory is reset. ��️ Safety Warnings Electrical Safety: ⚠️ ALWAYS disconnect ALL power at the circuit breaker and GFCI before touching any wiring ⚠️ Installation MUST be performed by a licensed electrician only ⚠️ This board requires a neutral wire in both 115V and 230V configurations — verify before connecting ⚠️ Class A GFCI protection is mandatory per NEC Article 680 ⚠️ Use copper conductors ONLY — no aluminum wiring permitted ⚠️ A dedicated circuit and disconnect within line of sight of the spa are required by NEC ⚠️ Never operate spa with the control box cover removed Board-Specific Warnings: ⚠️ DO NOT install in a metal enclosure — plastic box only; installation in a metal box will cause fit and safety issues ⚠️ DO NOT use with Thermo Spa systems — will cause incompatibility and incorrect spa operation ⚠️ Copper strap on existing heater must be removed before connecting to this board — failure to remove may damage the board ⚠️ Ozone and Circ Pump must be the same voltage when a circ pump is installed — mismatched voltages will damage components ⚠️ Setting DIP switches incorrectly may cause abnormal operation or component damage ⚠️ Persistent Memory (A12) MUST be reset after any DIP switch change — changes will not take effect otherwise ⚠️ W9 wire and J37 jumper must be set to the same light voltage — mismatch causes light circuit damage ⚠️ Do not order based on board appearance — verify chip number matches EL2000M3R2x Post-Installation: ⚠️ Confirm Priming Mode completes successfully before heater activation ⚠️ Test GFCI function, hi-limit sensors, and all safety features before first use ⚠️ Check topside display for error codes on initial startup ⚠️ Verify correct Software System ID (SSID) displays on power-up (should show three numbers; third is Software Version 32) �� Error Codes & Troubleshooting Power-Up Display Messages Display Meaning Action Three numbers (SSID) System software ID; third number = software version (should be 32) Normal — proceed to priming 240 or 120 Input voltage detected Normal — confirms voltage configuration LO / HI Heater wattage range supported Normal CnF or configuration error DIP switch or jumper conflict detected Correct DIP switch / jumper settings; reset Persistent Memory RUN PMPS PURG AIR Priming Mode active Normal — allow pumps to prime Sn or sensor display Sensor A / Sensor B temperature readings alternating Normal with test mode active Troubleshooting Quick Reference Symptom Likely Cause First Step Nothing operates Breaker off / GFCI tripped / no power Reset breaker and GFCI; restore power Configuration error on startup Invalid DIP switch combination Correct DIP settings; reset Persistent Memory (A12 ON) No heat DIP A2 OFF (heater disabled with pumps), low flow, or wiring Check A2 setting and water flow; verify heater connections Pump 2 not responding B2 not ON, wrong wiring, or board update limitation Enable B2; confirm wiring; note Pump 2 limited to 1-speed on boards manufactured after Sept 2020 Light not working J37/W9 voltage mismatch or wrong setting Verify J37 and W9 are both set to the same voltage (12V or 120V) Panel shows wrong time J91 incorrect for panel type ML700/ML900: J91 = 1-pin only. ML400: J91 = both pins jumpered DIP switch changes not working Persistent memory not reset Power down; set A12 ON; power up; wait for ready; set A12 OFF; power down and up GFCI trips immediately Wiring fault or heater copper strap not removed Verify copper strap removed; contact licensed electrician Ozone not working W13 voltage mismatch or circ/ozone voltage conflict Verify W13 position; ensure circ pump and ozone are same voltage �� Ideal Applications Application Suitability Notes ♨️ EL2000 Mach 3 system replacement ✅ Direct replacement Match chip EL2000M3R2x; reconfigure DIP switches ♨️ Beachcomber hot tub (select models) ✅ Compatible — select models only NOT for 53210-01/02/03 or 51593-01 ♨️ Master Spas Legend series ✅ Compatible (54491 series) Verify chip number match ♨️ Coleman by MAAX spa ✅ Compatible Including some with pack 106-982 / 54301-04 (verify chip) ♨️ Granville Spas ✅ Compatible — select models Verify chip number ♨️ Thermo Spa brand ❌ NOT compatible Contact Thermo Spa for correct board ♨️ Metal box enclosure spa ❌ NOT compatible Board installs in plastic box only ♨️ Spa needing M7 upgrade ✅ M7 Technology — no pressure switch Eliminates need for external pressure switch ❓ Frequently Asked Questions Q: How do I know if this board fits my spa? A: Locate the chip number label on your existing circuit board. It must read EL2000M3R2 followed by any letter (A through E). Also confirm your spa uses a plastic control box, and that the topside panel is an ML400, ML700, or ML900. Never order based on board appearance — the chip number is the only reliable identifier. Q: Will this board work with my Thermo Spa hot tub? A: No. This board is not compatible with any Thermo Spa system, including models using boards TS2000R2A, TS2000R2B, TS2000R2C, QC2000, or system packs 55000-02 through 55000-04. Thermo Spa owners must contact Thermo Spa directly for the correct replacement board. Q: My spa has a metal control box — will this fit? A: No. The G1222 / EL2000M3 board is designed for plastic control box enclosures only. It will not physically install in a metal box. Q: Do I need to do anything special with my existing heater? A: Yes — this is a critical step. The copper strap on your existing heater must be removed before connecting it to this board. The new board ships with a Plug-n-Click Molex adapter (PN 25696). If keeping your original heater, you will also need heater adapter PN 25263 (60-138-1040). Failure to remove the copper strap may damage the board. Q: Do I need a licensed electrician to install this? A: Yes. NEC Article 680 and most local jurisdictions require a licensed electrician for all hot tub electrical work, including board replacement. A permit may also be required. Q: My DIP switch changes aren’t taking effect — what’s wrong? A: Persistent Memory must be reset after ANY DIP switch change for the new settings to take effect. Power down the system, set DIP switch A12 to ON, power up, wait for the ready display, then set A12 back to OFF. If you don’t do this, the board retains the previous settings. Q: Does this board work with both 115V and 230V? A: Yes. The EL2000M3 is a dual-voltage board supporting both 115VAC (20A breaker, 3-wire) and 230VAC (50A breaker, 4-wire). A neutral wire is required in both configurations. Always confirm your spa’s electrical supply voltage with a licensed electrician before installation. Q: Can Pump 2 run at 2-speed? A: The board’s DIP switches include a 2-speed option for Pump 2 (B1 OFF = 2-speed). However, note that some boards manufactured after September 2020 may only support Pump 2 at 1-speed regardless of DIP switch setting. Contact Parts4Tubs for current production details. Q: What warranty is included? A: Balboa Water Group provides a 1-year limited warranty against defects in materials and workmanship. Note: circuit boards are non-returnable once installed. Contact Parts4Tubs for warranty claim assistance. Q: What if I have error codes or configuration errors after installation? A: The most common issue is a DIP switch conflict — display of a configuration error means the combination of switches selected is not supported. Review your DIP switch settings against the system outputs table and correct accordingly. Always reset Persistent Memory (A12) after any change. Contact Parts4Tubs technical support for guided assistance. �� Downloads & Resources �� Balboa EL2000 Mach 3 Tech Sheet — Official Manufacturer PDF (53884-05_97_A) — Complete wiring diagram, DIP switch definitions, jumper descriptions, panel configurations, and ozone connection diagrams ⭐ Why Choose the Balboa EL2000M3 (G1222)? ✅ M7 Technology — No external pressure switch or flow switch needed; fewer failure points and simpler installation compared to older EL2000 generations ✅ Dual-Voltage Flexibility — Single board supports 115V or 230VAC spa systems; confirmed by multiple authorized Balboa distributors ✅ Widest EL2000 Configuration Range — Pump 1 (2-speed) configurable Pump 2 (1 or 2-speed) optional Blower optional Circ Pump optional Pump 3 via expander — covers virtually every EL2000 spa layout ✅ Genuine Balboa OEM Board — Correct chip (EL2000M3R2C), software version (32), and relay ratings for EL2000M3 systems; not a generic aftermarket substitute ✅ Comprehensive Cross-Reference — Replaces all 53834 revisions (-01 through -05) plus dozens of OEM and distributor part numbers across multiple spa brands ✅ Long-Established Platform — EL2000 has been deployed in millions of spas over many years; parts, technical documentation, and service expertise are widely available ✅ Flexible Lighting Support — 12V spa light, 120V fiber optic, and Mood EFX / Fiber EFX LED color systems all supported ✅ 1-Year Manufacturer Warranty — Backed by Balboa Water Group �� Why Buy From Parts4Tubs? ✅ US-based company with expert local support ✅ Fast US shipping on in-stock spa parts ✅ Spa specialists available to assist with EL2000M3 compatibility and DIP switch configuration ✅ Competitive pricing on genuine Balboa OEM circuit boards ✅ Full warranty support — we assist with Balboa warranty claims ✅ Easy returns within 30 days on eligible items ✅ Related accessories available — ML topside panels, X-P632 expander boards, heater kits, sensors, adapters, and more ✅ Expert guidance on whether EL2000M3 or a newer platform (BP7, BP501) is the right upgrade for your spa �� Summary The Balboa EL2000M3 Circuit Board (G1222) — formerly 53834-05 — is the genuine OEM replacement for EL2000 Mach 3 spa control systems. With M7 Technology (no pressure switch required), dual-voltage support (115V/230VAC), 2-speed primary pump, configurable secondary pump or blower, optional circ pump, ozone, and 12V/120V lighting, it covers the full range of EL2000 spa configurations. Compatible with Balboa ML400, ML700, and ML900 topside panels. Critical installation notes: plastic box only, Thermo Spa incompatible, copper strap must be removed from existing heater. Backed by a 1-year Balboa warranty. Order from Parts4Tubs with confidence. Parts4Tubs is proud to be a Balboa Authorized Online Seller - make sure you only buy genuine Balboa parts from trusted sources. Finding and identifying a replacement Hot Tub Circuit Board (PCB) If you are looking to replace a failed PCB on your Hot Tub’s spa pack, then quite often identifying the part that you need can be the hardest thing. Firstly, you are looking for a model number on the actual circuit board itself. Having the model or serial of your hot tub is not going to help at this point, you need to find the number on the PCB itself. Now, with certain brands of PCB, the number of the replacement PCB that you need is not going to match identically the one you are replacing. Why is that I hear you ask? Well, normally, it is an updated version. This means that it might have updated firmware on the PCB or be a later revision. Normally, this means that the part number would be slightly different. This is usually indicated with a “12345678 -x” at the end of that part number where x indicated a firmware revision. In some cases, there will be some following letters on the part number of the circuit board, “12345678 -x MAS” this can indicate that the PCB was used for an OEM meaning it was produced for a certain hot tub manufacturer and the letters identify the manufacturer. This means if you source an original PCB, it will not have the letters, but will in most cases work just fine. It can be confusing I know! What if you can’t find a model number? If you can’t find a model number on the PCB itself, then you need to look for a model number on the spa pack. Normally, there is a sticker on the outside of the spa pack that tells you the current ratings and input voltages etc and this will have a model number. In general, most spa packs in the USA are manufactured by Balboa, Hydro-Quip, ACC or Gecko. I know I am generalising here, but if you have a spa pack that has the brand of your hot tub on, it will be an OEM so the key is identifying who made the original box. From there, you can normally find an original PCB that you will be able to switch out. For example, the Balboa VS (value series) is a very popular spa pack that has been used by multiple hot tub manufacturers under their own brand names. Whatever they have called it, strip it back and it is still a Balboa VS. Visual Inspection One of the most important things you can do when you are looking for a replacement is to visually inspect the PCB that you have versus the picture online of the replacement you are considering. They need to look the same even if there are the differences in firmware revisions or OEM part numbers, you should be visually replacing a PCB that looks like the one you have. Configuring a replacement Hot Tub Circuit Board (PCB) When you get a new PCB, you are more than likely going to need to configure it. Most PCBs have a number of different modes and setups that the can operate in. For this, you will need to manual or spec sheet to guide you. For things like DIP switches, most of the time you can copy the settings from your original circuit board. You are looking for things like setting the voltage as a lot of PCBs can be configured to run on both 115V and 230V. You may need to move jumpers or even wires to configure voltages – the key here is that you read the schematic and don’t expect the PCB to just work out of the box – it usually doesn’t. Troubleshooting a Hot Tub Circuit Board (PCB) Here are some common things you will see when you replace a PCB on a hot tub. You press the buttons on the topside control and they don’t control the right parts (pumps or blower etc) – this is a mode configuration thing and you will either need to change some DIP switches on the PCB or an internal or low level programming mode on the topside control. Check the manual for how to do this. You turn on the hot tub and it trips the breaker – it is not common for a new PCB to fail out of the box (I have not seen one yet!) However, a common mistake is that the voltage has not been set correctly. If it is set for 115V and then you try and turn it on, the current draw will be a lot more (twice) than expected and the breaker will trip. To check this, unplug all of your kit – heater, pumps, blower and then turn on the PCB. If it trips with nothing plugged in, usually the voltage is incorrectly set and what is happening is that live current is being sent to the ground – because you have 4 wires into the PCB rather than 3. Current on the ground loop causes the trip. Check the settings to make sure it is configures for 230V. It might not trip until you physically turn on a pump or a blower. As mentioned, if the pack is set to 115V and your pump is meant for 230V, it will draw twice the current at half the voltage and trip your breaker. Check the manual for info on how to set the voltage.
