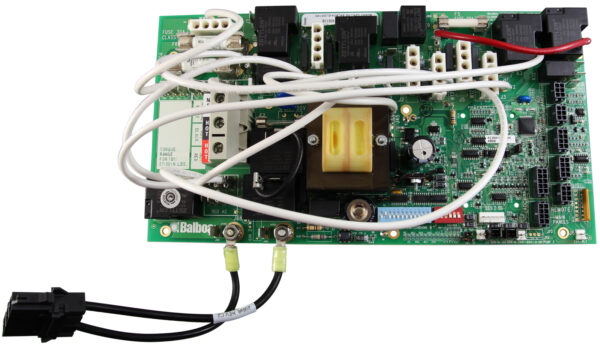

⚡ Balboa Genuine EL2001M3 Spa Circuit Board — G1223 — Current-Production Multi-Pump 240V ML-Series Control System OEM-quality circuit board for reliable EL2001 Mach 3 spa control and performance. ⚠️ IMPORTANT — PLEASE READ BEFORE ORDERING Includes Plug’n’click heater adapter PN 25696. This board ships with the Plug’n’click receptacle adapter already included. If connecting to an existing older screw-terminal heater, you will also need cable adapter PN 25263 (60-138-1040). Removing the copper heater strap is REQUIRED — this prevents arcing that was a known issue with old-style heater straps. Identify your board by chip number. The EL2001 Mach 3 board carries chips in the EL2001M3R2 series. Do not order based on appearance alone. Replacing a Mach 2.1 board? You will need to move the circuit board standoffs inside the control enclosure — standoff positions differ between Mach 2.1 and Mach 3. Circuit boards are non-returnable. Contact Parts4Tubs to confirm your chip number and compatibility before ordering. Not for use in a metal enclosure box. Designed for Balboa plastic spa pack enclosures only. �� Product Overview The Balboa Genuine EL2001M3 circuit board (Current MPN G1223) is Balboa Water Group’s latest-production PCB for the EL2001 ML-series spa control platform. It is the current replacement for all legacy EL2001 Mach 1, Mach 2, Mach 2.1, and earlier Mach 3 PCBs (including 53974-05 and all 53974 revisions). This genuine board includes the Plug’n’click heater adapter (PN 25696) — Balboa’s current connector standard, eliminating the older copper strap connection that was prone to arcing. Built on PCB hardware 22896 Rev B with the EL2001M3 software platform, this board manages a two-speed primary pump, a second pump, a dedicated circulation pump, blower, ozone generator, and spa lighting. The EL2001 platform is characterized by its W15 jumper at J98, enabling the X-B and X-P332 expander board configuration for blower output when operating with a two-speed Pump 2. Optional expander boards expand the system to support additional 2-speed pump outputs. Compatible with Balboa ML-series topside panels including the ML400, ML551, ML700, and ML900, this board has been deployed across a wide range of spa brands including Master Spas and Bullfrog Spas. It is the direct like-for-like replacement for spas originally equipped with any EL2001 Mach 3 control board. �� Key Features ✅ Genuine Balboa Water Group — Current MPN G1223 — latest-production board, replacing all 53974 series revisions ✅ Includes Plug’n’click Adapter PN 25696 — no separate purchase needed for new heater installations ✅ Eliminates copper strap connection — the new Plug’n’click design prevents arcing at the heater terminal ✅ Two-Speed Pump 1 Control — 240V main jet pump with high and low speed ✅ Pump 2 Output — 240V, configurable 1-speed or 2-speed via DIP switches B1/B2 ✅ Blower Output — 240V, 1-speed; with 2-speed Pump 2, X-P332 or X-B expander required ✅ Circulation Pump Output — 240V, separate relay, four programmable filtration modes (A9/A10) ✅ Ozone Generator Output — 120V or 240V field-selectable via W13 wire ✅ Spa Light Output — 12V or 120V selectable via J37 jumper and W9 wire ✅ 5.5kW Heater Support — 240V flow-through heater at full rated output ✅ Expander Board Support — X-P332 (G1920), X-B, X-P, X-P632, X-P231 for additional pump outputs ✅ Dual DIP Switchbanks — Switchbank A (12 positions) and Switchbank B (6 positions) ✅ Persistent Memory (A12) — stores all user preferences, filter settings, and set temperature; battery-free ✅ Real Time Clock (RTC) Support — J91 jumper enables/disables for ML-series panels ✅ Dolphin Remote Compatible — Full-Feature and Spa-Only Dolphin Remote (J20) ✅ M7 Technology — no pressure switch or external sensors required ✅ 1-Year Manufacturer Warranty — backed by Balboa Water Group ✅ Made in the USA — Balboa Instruments, Inc. ⚙️ Technical Specifications Specification Value Current Balboa MPN G1223 Replaces OEM Part Numbers 53974-05, 53974-04, 53974-03, 53974-02, 53974-01, 53974 Chip Number (current) EL2001M3R2E Chip Numbers Also Replaced EL2001M3R2A, EL2001M3R2B, EL2001M3R2C, EL2001M3R2D, HS2000R2B, MS5000R1A, SPAE15R1A, BF05R2A, MQKUR2E PCB Part Number 22896 Rev B System PN 53882-05 (YCAH config) / 56002-04 (YCAJ config) Software Version 32 Board Type Main Spa Control PCB — EL2001 Mach 3 Key EL2001 Factory Setting W15 jumper at J98 — enables X-B/X-P332 expander for blower with 2-speed P2 Included Accessory Plug’n’click adapter PN 25696 Input Voltage 240VAC / 60Hz Service Required 48A, Class A GFCI-protected, 4-wire (Hot, Hot, Neutral, Ground) Max Breaker Rating 60A Heater Output 5.5kW @ 240VAC Pump 1 Output 240V, 2-Speed Pump 2 Output 240V, 1-Speed (default) or 2-Speed (DIP B1 OFF, B2 ON) Blower Output 240V, 1-Speed; X-P332 or X-B expander required with 2-speed P2 Circ Pump Output 240V, 1-Speed, separate relay (DIP A9/A10) Ozone Output 120V or 240V field-selectable at J9 via W13 Spa Light Output 12V or 120V selectable at J12 via J37 and W9 DIP Switches Switchbank A: 12 positions (A1–A12); Switchbank B: 6 positions (B1–B6) Fuse (F5/F6) Class G 30A (two fuses) Fuse (logic) 0.3A 250V Fuse (F10A) 10A 250V Additional Fuse 3A 250V TB1 Torque 27–30 in. lbs. Wire Type Copper conductors only Enclosure Plastic Balboa spa pack ONLY — NOT for metal enclosure Heater Connection Plug’n’click (PN 25696 included); for older heater use adapter PN 25263; copper strap removal required Board Weight Approximately 3.05 lbs Warranty 1 year (manufacturer) ⚠️ Heater wattage note: 5.5kW at 240VAC. At 120V input, heater output is approximately 1/4 of the 240V rated wattage. ℹ️ US Voltage Note: 240VAC/60Hz US residential service. Do not connect to 50Hz or CE-market power systems. �� Compatibility Guide ⚠️ CRITICAL — IDENTIFY BY CHIP NUMBER: EL2001 Mach 3 chips are in the EL2001M3R2x series. Do not order based on board appearance — EL2000 and EL2001 boards look identical but have different factory configurations (W15 jumper position). Compatible Topside Panels (ML Series): Panel Part Number Panel Name Capability J91 Jumper Setting 52684 ML400 Non-time capable ON (both pins jumpered) ML551 series ML551 Time capable OFF (1 pin only) 52649-01 ML700 Time capable OFF (1 pin only) 52654-01 ML900 Time capable OFF (1 pin only) ℹ️ ML551 compatibility is confirmed via Horizon recommended items for this board. ML400, ML700, ML900 are PDF-confirmed. ⚠️ AV/Stereo Note: The EL2001M3 platform includes a J4 connector on the board, and certain system configurations (YCAJ) support stereo at J4. If your original system had a stereo connection through the spa pack, contact Parts4Tubs to confirm AV compatibility for your specific configuration before ordering. Compatible Expander Boards: Expander G-Number Description Max Amps Notes X-P332 G1920 (PN 55137) 2-relay, 2-speed pump output 12A per relay, 30A fuse Recommended for G1223 — newer 2-speed expander X-B PN 53310 Blower output when P2 is 2-speed 10A fuse W15 at J98 (EL2001 default) X-P PN 53544 1-speed Pump 3 when P2 is 1-speed Blower on J3 — W15 to J97 X-P632 PN 53680 2-speed Pump 3; connects to Black AC 30A fuse Older EL series expander X-P231 G1910 (PN 53681) Branch circuit protection, high-amp devices — Connects to Black AC X-O3 PN 53426 Dedicated ozone with X-FOW fiber optic kit — Adapter PN 25338 required X-Mount P PN 53933 Expander board mounting kit for plastic enclosure — — Replaces / Cross-Reference Part Numbers: Part Number Description G1223 Current Balboa MPN — this board 53974-05 Previous version (no Plug’n’click included) 53974, 53974-01 through 53974-04 All earlier 53974 revisions 53414 EL2001 Mach 2.1 53984 EL2001 variant 54492 EL2001 variant 55013-01 EL2001 variant 54278, 54491, 55022-01 EL2001 variants 55066-04 EL2001 M3 control system (YCAH) 56002-04 EL2001 M3 control system (YCAJ) 54464-04 EL2001 M3 control system (YCAJ) 53882-05 EL2001 M3 system PN using base PCBA 53974-05 33-53974-K Hydroquip catalog number 600-6292 / 600-6298 OEM system variants X801095 Master Spas OEM board X300025 OEM variant 3-60-0097 OEM control system variant 3-70-0808 \ 460 Mach 3 OEM control system variant EL2001M3R2C, HS2000R2B, MS5000R1A, SPAE15R1A, BF05R2A Chip numbers replaced ��️ Board Functions & Controls Pump Configuration: Output Connector Voltage Notes Pump 1 J1 W1 240V 2-Speed — heater pump in non-circ setups Pump 2 J5 W12 240V 1-Speed default; B1 ON = 1-spd; B1 OFF = 2-spd Blower J3 W2 240V B3 ON; with 2-speed P2, use X-P332 (G1920) or X-B expander Circ Pump J2 W7 120V or 240V Separate relay; modes via A9/A10 Pump 3 Via X-P or X-P332 240V Requires expander board EL2001 W15 Factory Configuration: The EL2001 board ships with W15 at J98 — this is the X-B/X-P332 expander configuration enabling blower output when Pump 2 is 2-speed. This is the key factory difference from the EL2000 (53834 / G1222) which uses a different W15 position. Circ Pump Behavior (A9/A10 — PDF-CONFIRMED): A9 A10 Mode OFF OFF No Circ Pump ON OFF 24 Hours OFF ON 24 Hr with 3°F Shut-Off ON ON Acts like Pump 1 Low (filter cycles, polls) Heater Control: Feature Specification Heater Output 5.5kW @ 240VAC Heater Connection Plug’n’click (adapter PN 25696 included) Hi-Limit Sensor Sensor A (SENS. A) Temperature Sensor Sensor B (SENS. B) Additional Outputs: Output Connector Voltage Notes Ozone J9 W13 120V or 240V W13: Red AC = 240V; White AC = 120V Spa Light J12 W9 J37 12V or 120V J37 pins 1–2 = 120V; pins 2–3 = 12V; W9 must match AV / Stereo J4 W8 120V Supported in YCAJ configuration; contact Parts4Tubs to confirm Fiber / Color Wheel J12 or J2 — Via B4 ON; X-FOW kit may be required DIP Switchbank A (A1–A12 — PDF-CONFIRMED): Switch OFF Position ON Position A1 Test Mode OFF (normal) Test Mode ON — technician only A2 Low Amp — heater off with any HS pump/blower High Amp — heater on with HS pump/blower A3 Filter cycles by start/end times Filter cycles by duration A4* 12-hour time display 24-hour time display A5* Fahrenheit Celsius A6 15-min timeout (2 hr for P1 Low) 30-min timeout (4 hr for P1 Low) A7 No Cleanup Cycle Cleanup Cycle ON A8 No ozone suppression 1-hr ozone suppression after pump/blower press A9 See Circ Pump Table See Circ Pump Table A10 See Circ Pump Table See Circ Pump Table A11 Non-circ: Ozone with P1 Low; Circ: Ozone with circ (P1 2-spd) Non-circ: Ozone in filter/cleanup only; Circ: Ozone with circ (P1 1-spd) A12 Persistent Memory Retained (normal) Persistent Memory RESET — use at power-up only A4/A5 defaults apply only when A12 is ON at power-up DIP Switchbank B (B1–B6 — PDF-CONFIRMED): Switch OFF Position ON Position B1 Pump 2: 2-Speed Pump 2: 1-Speed B2 Pump 2: Disabled Pump 2: Enabled B3 Blower: Disabled Blower: Enabled B4 Spa Light Fiber Optic and Color Wheel B5 Pump 3: Disabled Pump 3: Enabled B6 Normal panel layout Alternate panel layout Key Jumpers: Jumper Function W15 EL2001 factory position: J98 — enables X-B/X-P332 expander for blower with 2-speed P2 J37 Spa Light voltage: pins 1–2 = 120VAC; pins 2–3 = 12VAC. W9 must match. J91 RTC: 1 pin = Enabled; pins 1–2 = Disabled (non-time panels) J83 (CFG) Logic jumper: NOT installed = DIP switches active W13 Ozone voltage: Red AC = 240V; White AC = 120V W9 Spa Light — must match J37 voltage setting �� Installation Requirements ⚠️ Installation must be performed by a licensed electrician in compliance with NEC and all applicable local codes. Pre-Installation Checklist: [ ] Confirm chip number is in the EL2001M3R2x family [ ] If replacing Mach 2.1: move standoffs to Mach 3 positions before installing [ ] Record all DIP switch settings (A and B banks) on existing board [ ] Record all jumper settings (J37, J91, W13, W9, W15) [ ] Disconnect all power at the GFCI breaker or disconnect [ ] Photograph all wiring and connections [ ] Allow capacitors to discharge — 5 minutes after power-off [ ] Confirm enclosure is plastic [ ] Remove the copper heater strap — this is required, not optional [ ] If existing heater has screw terminals: install adapter PN 25263 before connecting to new Plug’n’click receptacle (PN 25696, already included with board) Electrical Requirements: Requirement Specification Supply Voltage 240VAC / 60Hz Service 48A, 4-wire (Hot, Hot, Neutral, Ground) Circuit Breaker 60A maximum GFCI Protection Class A GFCI required — NEC Article 680 Ground & Bonding Required — NEC Article 680 Dedicated Circuit Required Disconnect Box Within line of sight of spa, at least 5 ft from spa walls (NEC) Wire Type Copper conductors ONLY TB1 Torque 27–30 in. lbs. Key Board Connectors: Connector Function TB1 Main power (Hot/Black, Hot/Red, Neutral/White, Ground) J1 W1 Pump 1 (2-Speed) J2 W7 Circ Pump (separate relay) J3 W2 Blower or Pump 3 J4 W8 AV / Stereo (always-hot) J5 W12 Pump 2 (1- or 2-speed) J9 W13 Ozone (120V or 240V) J12 W9 Spa Light (12V or 120V) J20 Dolphin Remote J37 Spa Light voltage selector J70/J71/J72 Main topside panel J83 (CFG) Logic jumper J91 Real Time Clock jumper W15 EL2001 factory: J98 SENS. A / SENS. B Hi-limit / temperature sensors VAC Pressure/vacuum switch input EXT. RLY External relay 2SP PUMP 3 2-speed Pump 3 via X-P332/X-P632 AUX. F Aux freeze sensor ⚠️ Persistent Memory Reset (REQUIRED after any DIP switch or configuration change): Power down the spa Set A12 ON Power up — wait for “GC” or “CG” on panel Set A12 OFF (non-conductive tool if powered, or power down first) If powered down in step 4, power up again Leave A12 OFF for all future power-ups ��️ Safety Warnings ⚠️ ALWAYS disconnect all power before board work — shock hazard ⚠️ Licensed electrician installation; NEC Article 680 compliance mandatory ⚠️ Class A GFCI required per NEC Article 680 ⚠️ Equipment grounding and bonding required per NEC Article 680 ⚠️ Plastic enclosure ONLY ⚠️ Copper heater strap removal is REQUIRED — old-style straps cause arcing; this is a safety issue, not just a preference ⚠️ For older heater: install adapter PN 25263 then connect to Plug’n’click PN 25696 (included). Do NOT force old connections onto new connector. ⚠️ Reset Persistent Memory (A12) after any DIP switch change — new settings will NOT take effect without this step ⚠️ J37 and W9 must be set to the same voltage for spa light ⚠️ If replacing Mach 2.1: move standoffs before installation — different positions ⚠️ Circuit boards are non-returnable — verify chip number before ordering �� Error Codes & Diagnostics Power-Up Display: Display Meaning Three-number SSID Software Version (should be 32) “GC” Heater 3–6kW range — normal for 240V EL2001 “CG” Heater 1–3kW range Priming mode Normal startup CFE switch/jumper Configuration Error — fix DIP/jumper combo Common EL-Series Error Messages: Display Meaning Action OH Overheat Allow to cool; check hi-limit sensor FLO / FL Flow error Check pump, filter, sensors SN / SNA / SNB Sensor failure Check Sensor A/B connections PS Pressure switch fault Check pressure switch wiring CFE Configuration Error Fix settings; A12 memory reset �� Ideal Applications Application Suitability Notes ♨️ Any EL2001 Mach 1/2/2.1/3 system ✅ Current-production replacement Verify EL2001M3R2x chip; move standoffs if Mach 2.1 ♨️ Master Spas (MS5000R1A, X801095) ✅ Confirmed Cross-reference verified ♨️ Bullfrog Spas (BF05R2A) ✅ Confirmed Cross-reference verified ♨️ Hydroquip EL2001 (33-53974-K) ✅ Confirmed Same Balboa platform ♨️ ML400 / ML551 / ML700 / ML900 spas ✅ Compatible All ML-series panels ♨️ Spas with 2-speed P1 2-speed P2 Blower ✅ With X-P332 expander X-P332 (G1920) handles 2-speed P2 blower ❓ Frequently Asked Questions Q: What is the Plug’n’click adapter and do I need anything extra? A: The board ships with Plug’n’click receptacle PN 25696. If your existing heater uses an older screw-terminal connection, you also need cable adapter PN 25263 (60-138-1040, sold separately). The copper heater strap must be fully removed before connecting — this eliminates the arcing risk that was a known problem with older heater connections. Q: Why was the copper strap removed from the connection design? A: Old-style copper straps were prone to arcing and causing electrical damage over time. The Plug’n’click system provides a secure, vibration-resistant connection that eliminates this issue. Balboa made this change across the VS and EL series control platforms. Q: How do I confirm this is the right board? A: Check the chip number label on your existing board (white sticker, near center or on relay/transformer). If it shows EL2001M3R2x (any letter suffix), this board is the correct replacement. Contact Parts4Tubs with your chip number if unsure. Q: My existing board is Mach 2.1 — will this fit? A: The Mach 3 board replaces Mach 2.1 functionally, but you must move the circuit board standoffs inside the enclosure before installation. The mounting hole positions differ between Mach 2.1 and Mach 3 boards. Q: Does this board support a second 2-speed pump AND a blower? A: Yes, with the X-P332 expander board (G1920). When Pump 2 is configured as 2-speed, the blower requires the X-P332 expander (or X-B expander) with W15 at J98 — which is already the factory setting for this EL2001 board. Q: Does this board support AV/stereo? A: The EL2001M3 platform includes a J4 AV connector on the board hardware, and certain system configurations support stereo output. Whether your installation supports AV depends on how the original system was wired. Contact Parts4Tubs with your existing board chip number and system information to confirm. Q: Do I need to reset Persistent Memory after installation? A: Yes, if you change any DIP switch or configuration settings. Set A12 ON at power-up, wait for the ready indicator, then set A12 OFF. Do this before final use. Q: Is this OEM or aftermarket? A: Genuine Balboa Water Group OEM board (G1223). Q: What warranty is included? A: 1-year manufacturer warranty. Contact Parts4Tubs for full terms. �� Downloads & Resources �� Balboa EL2001 Mach 3 Tech Sheet — Official PDF — Wiring diagram, DIP switch definitions, setup with 5.5kW heater and 1-speed Pump 2 default ⭐ Why Choose the Balboa Genuine EL2001M3 (G1223) ✅ Latest-production Balboa board — G1223 is the current MPN, shipped today ✅ Plug’n’click adapter included — no additional purchase needed for new heater installations ✅ Eliminates arcing risk — Plug’n’click design replaces failure-prone copper strap ✅ Covers all EL2001 Mach generations — replaces Mach 1, 2, 2.1, and Mach 3 boards ✅ Broadest ML-series panel support — ML400, ML551, ML700, ML900 all compatible ✅ Master Spas and Bullfrog compatibility confirmed — covers wide range of spa brands ✅ 1-year manufacturer warranty — Balboa Water Group factory coverage ✅ Non-returnable — Parts4Tubs verifies chip number before you order �� Why Buy from Parts4Tubs ✅ Fast US shipping ✅ Expert technical advice from spa specialists ✅ Competitive pricing ✅ Full warranty support ✅ Compatible expander boards, ML-series topsides, and heater adapter cables available ✅ Help confirming chip number, standoff compatibility, and AV configuration �� Summary The Balboa Genuine EL2001M3 PCB (G1223) is the current-production replacement for all EL2001 Mach 3 ML-series spa control systems. Rated for 240V/60Hz with a 5.5kW heater, it controls a two-speed primary pump, second pump, blower, circulation pump, ozone, and spa lighting. This board ships with the Plug’n’click heater adapter (PN 25696) — the copper heater strap must be removed, and older heaters need adapter PN 25263. Compatible with ML400, ML551, ML700, and ML900 topsides. Replacing a Mach 2.1 board requires moving the enclosure standoffs. Circuit boards are non-returnable — verify your chip number and confirm your configuration before ordering, and always reset Persistent Memory (A12) after any DIP switch change. Parts4Tubs is proud to be a Balboa Authorized Online Seller - make sure you only buy genuine Balboa parts from trusted sources. Finding and identifying a replacement Hot Tub Circuit Board (PCB) If you are looking to replace a failed PCB on your Hot Tub’s spa pack, then quite often identifying the part that you need can be the hardest thing. Firstly, you are looking for a model number on the actual circuit board itself. Having the model or serial of your hot tub is not going to help at this point, you need to find the number on the PCB itself. Now, with certain brands of PCB, the number of the replacement PCB that you need is not going to match identically the one you are replacing. Why is that I hear you ask? Well, normally, it is an updated version. This means that it might have updated firmware on the PCB or be a later revision. Normally, this means that the part number would be slightly different. This is usually indicated with a “12345678 -x” at the end of that part number where x indicated a firmware revision. In some cases, there will be some following letters on the part number of the circuit board, “12345678 -x MAS” this can indicate that the PCB was used for an OEM meaning it was produced for a certain hot tub manufacturer and the letters identify the manufacturer. This means if you source an original PCB, it will not have the letters, but will in most cases work just fine. It can be confusing I know! What if you can’t find a model number? If you can’t find a model number on the PCB itself, then you need to look for a model number on the spa pack. Normally, there is a sticker on the outside of the spa pack that tells you the current ratings and input voltages etc and this will have a model number. In general, most spa packs in the USA are manufactured by Balboa, Hydro-Quip, ACC or Gecko. I know I am generalising here, but if you have a spa pack that has the brand of your hot tub on, it will be an OEM so the key is identifying who made the original box. From there, you can normally find an original PCB that you will be able to switch out. For example, the Balboa VS (value series) is a very popular spa pack that has been used by multiple hot tub manufacturers under their own brand names. Whatever they have called it, strip it back and it is still a Balboa VS. Visual Inspection One of the most important things you can do when you are looking for a replacement is to visually inspect the PCB that you have versus the picture online of the replacement you are considering. They need to look the same even if there are the differences in firmware revisions or OEM part numbers, you should be visually replacing a PCB that looks like the one you have. Configuring a replacement Hot Tub Circuit Board (PCB) When you get a new PCB, you are more than likely going to need to configure it. Most PCBs have a number of different modes and setups that the can operate in. For this, you will need to manual or spec sheet to guide you. For things like DIP switches, most of the time you can copy the settings from your original circuit board. You are looking for things like setting the voltage as a lot of PCBs can be configured to run on both 115V and 230V. You may need to move jumpers or even wires to configure voltages – the key here is that you read the schematic and don’t expect the PCB to just work out of the box – it usually doesn’t. Troubleshooting a Hot Tub Circuit Board (PCB) Here are some common things you will see when you replace a PCB on a hot tub. You press the buttons on the topside control and they don’t control the right parts (pumps or blower etc) – this is a mode configuration thing and you will either need to change some DIP switches on the PCB or an internal or low level programming mode on the topside control. Check the manual for how to do this. You turn on the hot tub and it trips the breaker – it is not common for a new PCB to fail out of the box (I have not seen one yet!) However, a common mistake is that the voltage has not been set correctly. If it is set for 115V and then you try and turn it on, the current draw will be a lot more (twice) than expected and the breaker will trip. To check this, unplug all of your kit – heater, pumps, blower and then turn on the PCB. If it trips with nothing plugged in, usually the voltage is incorrectly set and what is happening is that live current is being sent to the ground – because you have 4 wires into the PCB rather than 3. Current on the ground loop causes the trip. Check the settings to make sure it is configures for 230V. It might not trip until you physically turn on a pump or a blower. As mentioned, if the pack is set to 115V and your pump is meant for 230V, it will draw twice the current at half the voltage and trip your breaker. Check the manual for info on how to set the voltage.
